Panel Saws

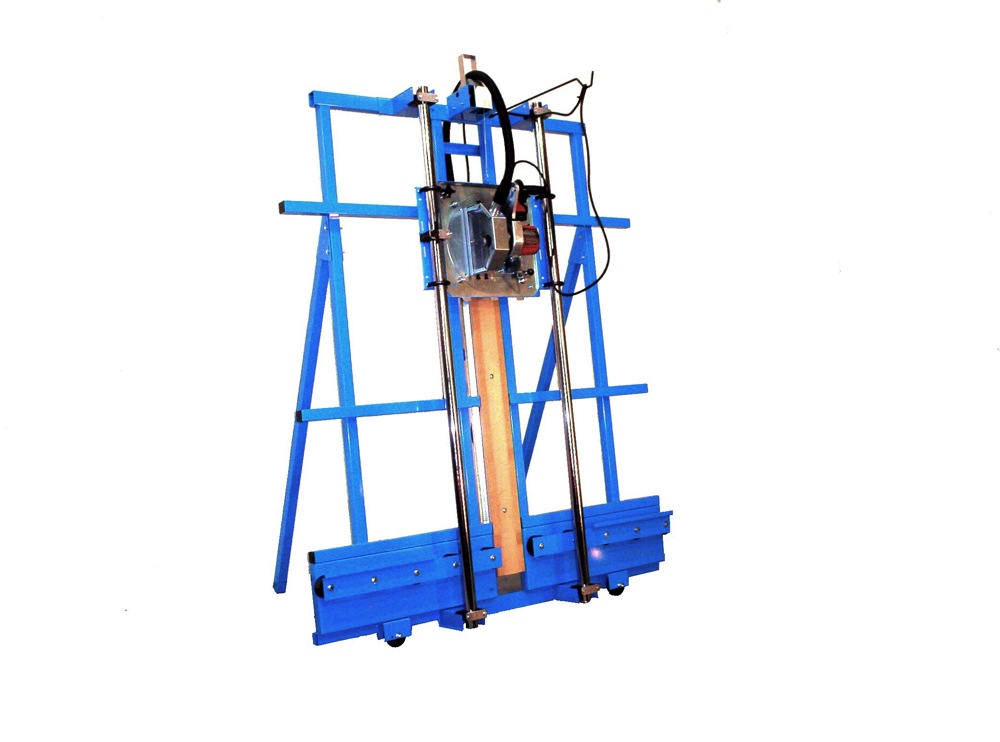

Economy 52" Crosscut

Economy Panel Saw (52" crosscut x 5' wide frame)
                            Stock # E-5205

  The Economy Model is just right for shops with floor space restrictions


Features:   Standard Rotating Saw Plate with Milwaukee Saw Motor
                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   52" crosscut with a 5' Frame with unlimited rip cuts

                   Foldable Stand and Wheels with Quick Release Pins
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded
                   Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 10 Material Wheels
                   Frame expandable to 10' wide with optional Frame Extensions
                   Shipped Assembled

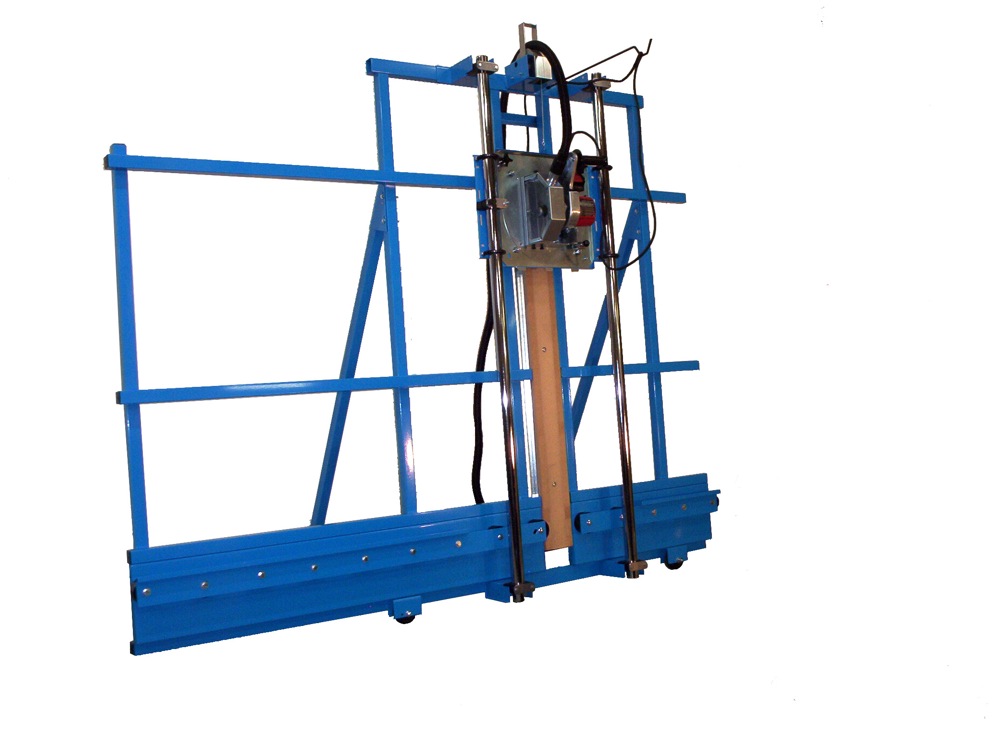

Intermediate 52" Crosscut

Intermediate Panel Saw (52" crosscut x 7-1/2' wide frame)
                            Stock # I-5275

   The Intermediate Model has full support on the left side of the frame


Features:   Standard Rotating Saw Plate with Milwaukee Saw Motor

                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   52" crosscut with a 7-1/2' Frame with unlimited rip cuts

                 Foldable Stand and Wheels with Quick Release Pins
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded

Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 14 Material Wheels

                   Frame expandable to 12-1/2' wide with optional Frame Extensions
                   Shipped Assembled

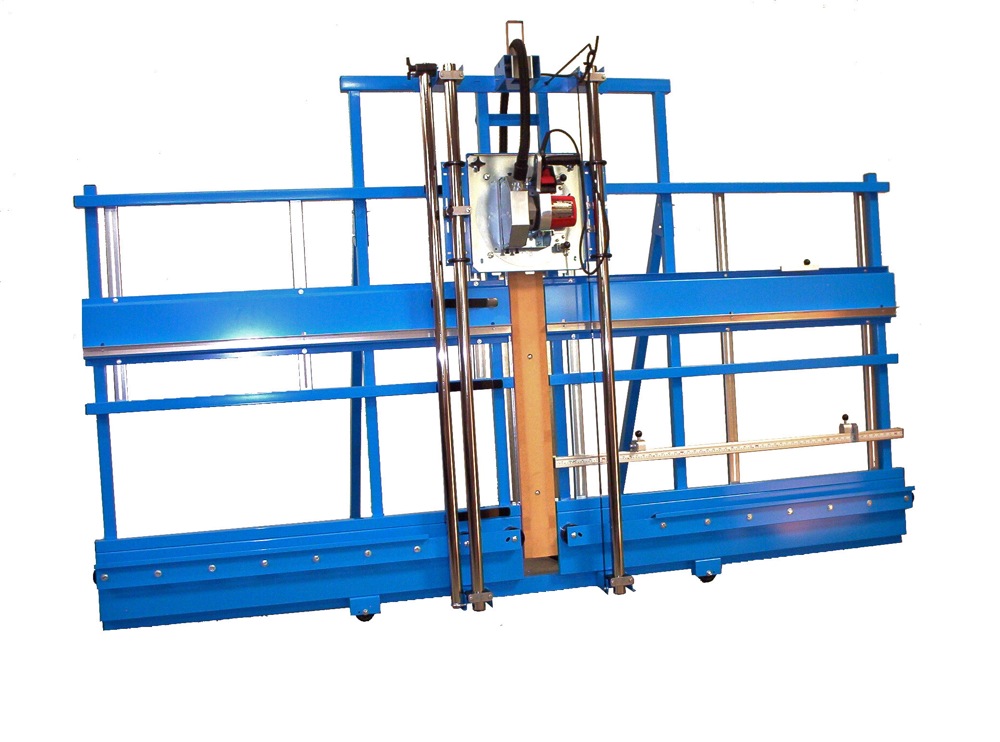

Pro 52" Crosscut

Pro-Panel Saw (52" crosscut x 10' wide frame)
                            Stock # P-5210

    The Pro Model has full support when rip cutting 4 x 8 sheets


Features:
Standard Rotating Saw Plate with Milwaukee Saw Motor

                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   52" crosscut with a 10' Frame with unlimited rip cuts

                   Foldable Stand and Wheels with Quick Release Pin
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded

Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 18 Material Wheels

                   Frame expandable to 15' wide with optional Frame Extensions
                   Shipped Assembled

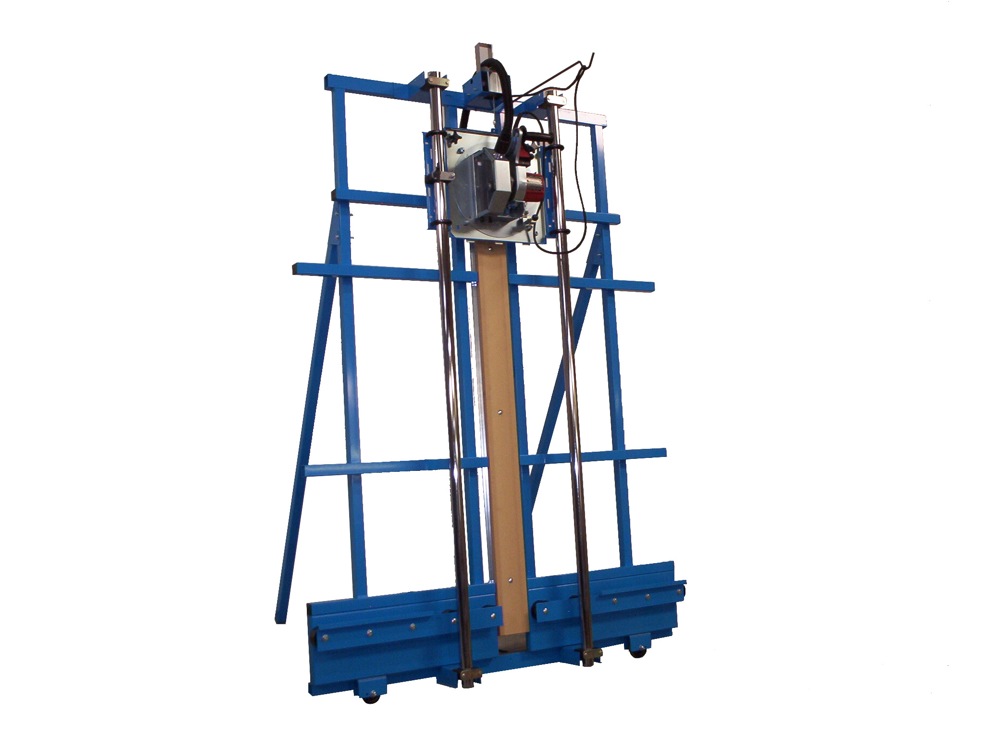

Economy Plus 64" Crosscut

Economy-Plus Panel Saw (64" crosscut x 5' wide frame)
                            Stock # EP-6405

    Ideal for shops with floor restrictions with 12 extra inches of crosscut

Features:   Standard Rotating Saw Plate with Milwaukee Saw Motor
                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   64" crosscut with a 5' Frame with unlimited rip cuts
                   Foldable Stand and Wheels with Quick Release Pin
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded

Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 10 Material Wheels
                   Frame expandable to 10' wide with optional Frame Extensions
                   Shipped Assembled

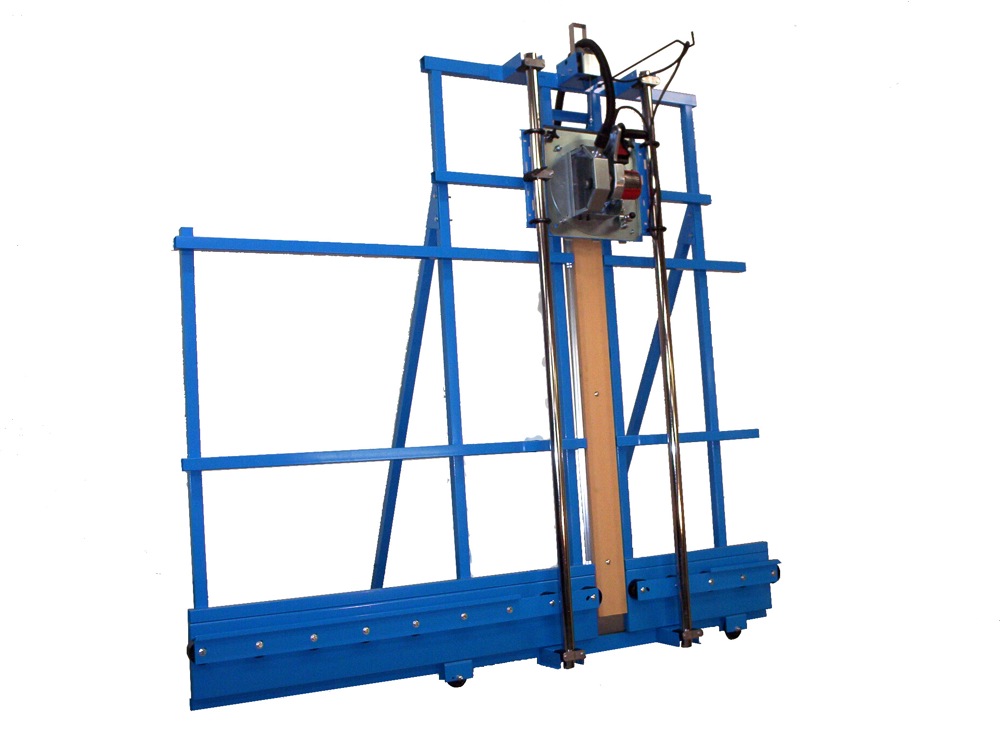

Intermediate Plus 64" Crosscut
Intermediate-Plus Panel Saw (64" crosscut x 7-1/2' wide frame)
                            Stock # IP-6475

    Full Support on the left side of the frame with 12 extra inches of crosscut



Features:
Standard Rotating Saw Plate with Milwaukee Saw Motor
                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   64" crosscut with a 7-1/2' Frame with unlimited rip cuts
                   Foldable Stand and Wheels with Quick Release Pin
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded

Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 14 Material Wheels
                   Frame expandable to 12-1/2' wide with optional Frame Extensions
                   Shipped Assembled

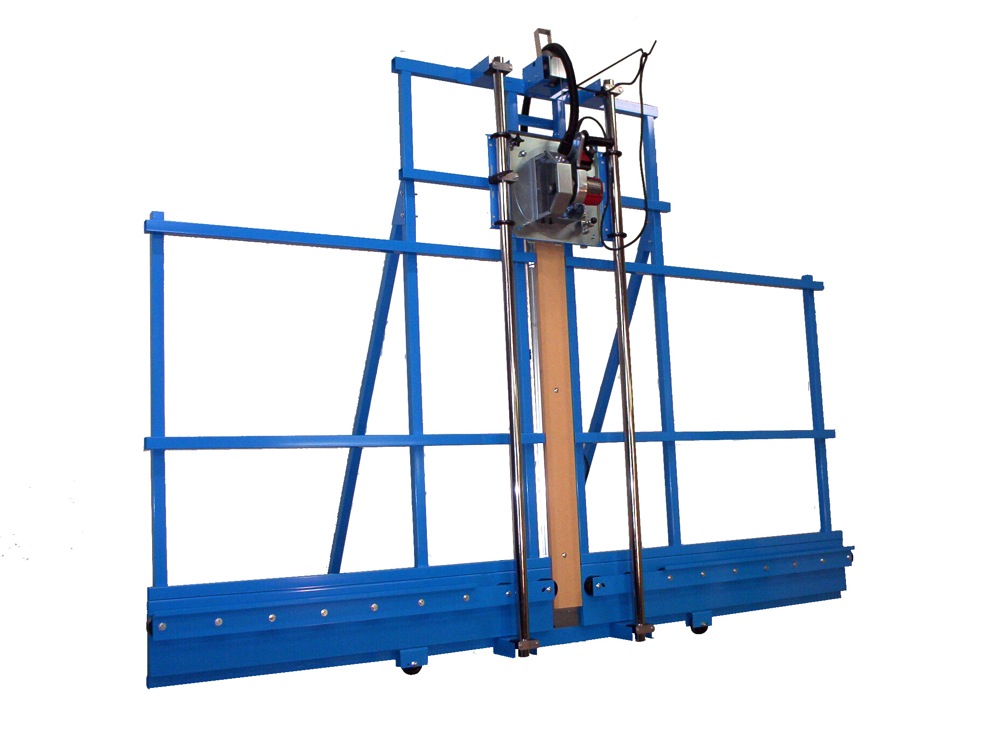

ProPlus 64" Crosscut

Pro-Plus Panel Saw (64" crosscut x 10' wide frame)
                            Stock # PP-6410

    The Pro-Plus functions like the Pro Model with 12 extra inches of crosscut

Features:   Standard Rotating Saw Plate with Milwaukee Saw Motor
                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   64" crosscut with a 10' Frame with unlimited rip cuts
                   Foldable Stand and Wheels with Quick Release Pin
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded

Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 18 Material Wheels
                   Frame expandable to 15' wide with optional Frame Extensions
                   Shipped Assembled

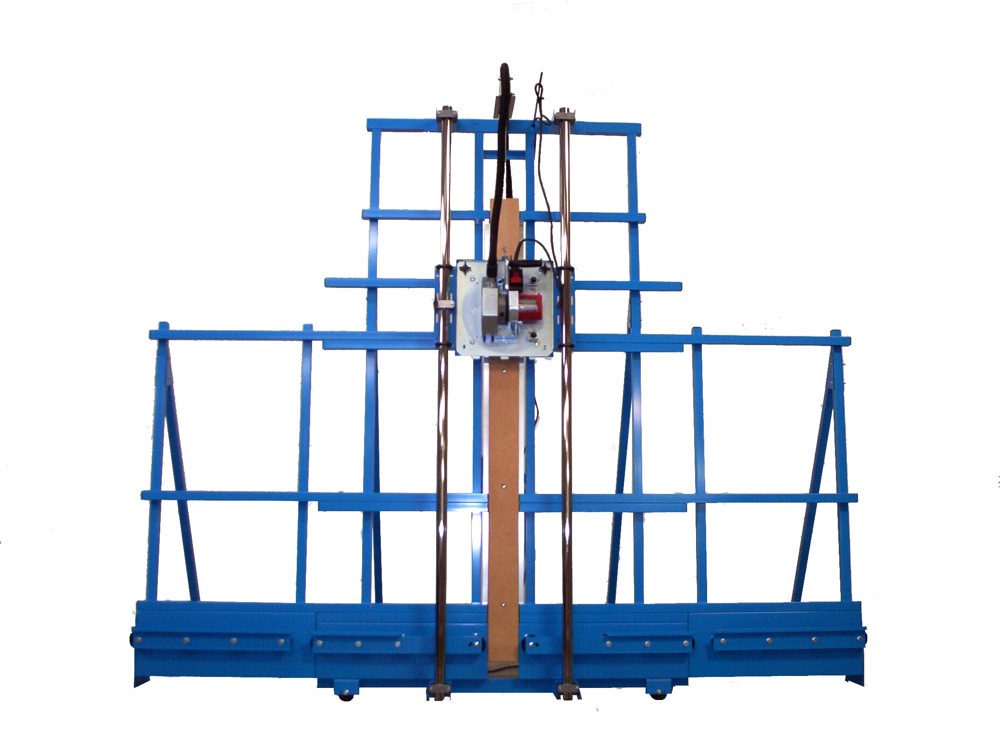

Super Pro-Plus 76" Crosscut

Pro-Extended Panel Saw (76" crosscut x 10' wide frame)

                            Stock # PE-7610

    The Pro-Extended Model has all the features of the Pro-Plus with 12 extra inches
        of crosscut

Features:   Standard Rotating Saw Plate with Milwaukee Saw Motor
                   Able to change from 7-1/4" to 8-1/4" Saw Blades
                   76" crosscut with a 10' Frame with unlimited rip cuts
                   Double Stands for stability and Floor Support Plates on frame ends
                   Frame Wheels with Quick Release Pins to lock machine in place
                   1-3/4" depth of cut with Rotating Saw Plate
                   Backer Board for firm support
                   1-1/2" Square Tubular Frame fully welded

Enclosed Dust / Safety Hood with Clear View and Dust Brush
                   1-3/4" Nickel Chromed Guide Tubes with nylon roller bearings
                   Carriage Safety Lock
                   Steel Hubs for all 18 Material Wheels
                   Width expandable to 15' wide with optional Frame Extensions
                   True 3 pulley counter weight system to return saw carriage
                   Some assembly required
